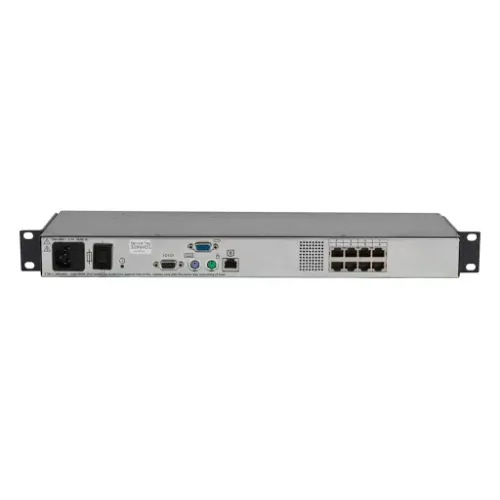

Dell Poweredge 180AS 8-Port KVM CMN: 1012 Console Switch

Dell Poweredge 180AS 8-Port KVM CMN: 1012 Console Switch
Dell Poweredge 180AS 8-Port KVM CMN: 1012 Console Switch
Estimated Date of Dispatch by Sat Apr 27 2024
Ex Tax: ₹8,900
Free Shipping
GST Invoice
  • Stock: 1
  • Model: Dell Poweredge 180AS 8-Port KVM CMN: 1012 Console Switch
  • SKU: 92INFGNR19
  • XSIN: 92INFGNR19
  • Condition: Seller Refurbished
7 Days Easy Return
100% Payment Protection. Return is applicable in case item is damaged faulty or different from description. Know More
Get GST Invoice and Save up to 18% on Business Purchases
Credit Card/Debit Card EMI Available
xfurbish seller



Product Quality
Delivery & Packaging
Service Support

Total Products 189


Have a question?

Warranty30 DAYS
Part NumberNa
Managed Switch
Number of Ports8-Port
Port SpeedNa
SFP (Included/Excluded)Na
Number of Power supply SupportedNa
Form Factor1U

Dell Poweredge 180AS 8-Port KVM CMN: 1012 Console Switch

The Dell™ PowerEdge™ 180AS console switch allows administrators to easily monitor and control multiple servers locally or remotely, featuring:

  • Eight ports
  • Control up to 64 servers over a single connection
  • Efficient design that enables 0U mounting in a Dell rack

The console switches come with a choice of two Server Interface Pods (SIPs) — PS/2 or USB — to fit a variety of server needs. A SIP replaces a bulky KVM (keyboard, video, mouse) cable by converting the keyboard, monitor and mouse signals from a server and driving them up to 15 meters (50 feet) through a single Category 5 (CAT 5) cable. The SIP cable draws its power from the server and has a Keep Alive functionality that is designed to keep the server working properly with or without connectivity to the unit.

The switches enable cross-platform management using the On-Screen Configuration and Activity Reporting (OSCAR®) interface. With the OSCAR interface, administrators can easily configure the switch system and select the different servers. Computers can be identified by unique name, electronic ID (EID) or port number, allowing users to assign unique server names.

An optional accessory to these units is the Dell Port Expansion Module (PEM), which is a passive device that can be mounted next to the railing of the rack. A PEM connects to one system port on the switch and then eight servers. With a PEM connected to each of the eight ports on the 180AS, the total system capacity of a 180AS expands to 64 total servers.

Other highlights include:

  • Connectivity — features intelligent analog ports
  • Flash upgradeable — designed for future hardware compatibility
  • Flexibility — provides access and control of multiple servers from a single screen
  • Integration — works with wireless KVM (local port extension) and KVM over IP (cascading/tiering)
  • Scalability — grows with an expanding IT environment
  • Space-efficient design — occupies 0U in a Dell rack
  • CAT 5 cabling — reduces cable bulk

Port Attributes

  • One local console connection(s) via 15-pin VGA monitor, PS/2 or USB mouse, PS/2 or USB keyboard
    One serial RS232 network connection, provides access to KVM switch for up to two simultaneous users
    Eight CAT 5 system connections (RJ-45 jacks) provide connectivity for systems via standard CAT 5 UTP cable


  • Width: 16.9 in. (42.9cm)
    Depth: 6.52 in. (16.56cm)
    Weight: 8 lbs. (3.6kg) without cables

    Supported Hardware

    Computers: PS/2 and USB
    Monitors: VGA, SVGA (XGA, XGA II with adapter) maximum resolution
    Local Port: 1024 X 768 at 75 Hz, Analog Port Maximum 1600x1280 @ 75 Hz
