Name: OE-28 Hall Effect Two Channel Magnetic Encoder
Brand: Orange
SKU: 294INCRQQK9
Price: 706.82 INR
Availability: InStock
Rating: 5 (1 reviews)

OE-28 Hall Effect Two Channel Magnetic Encoder

Estimated Date of Dispatch by Tue Apr 23 2024

Based on 1 reviews. - Write a review

₹707

Ex Tax: ₹599

Free Shipping

GST Invoice

Stock: 5
Model: OE-28
SKU: 294INCRQQK9
MPN: OE-28
XSIN: 294INCRQQK9
Condition: New

Orange

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

7 Days Easy Return

100% Payment Protection. Return is applicable in case item is damaged faulty or different from description. Know More

Get GST Invoice and Save up to 18% on Business Purchases

Credit Card/Debit Card EMI Available

Quickview

Dell Latitude E6420 Laptop Core i7 2 Gen 4GB 500GB Hard Disk

₹8,000

Ex Tax:₹8,000

Add to Cart Add to Wish List Compare this Product

Quickview

Lenovo Thinkpad T430 Core i5 3rd Gen Laptop 4GB RAM 500GB HDD 14 inch No Camera

₹7,000

Ex Tax:₹7,000

Add to Cart Add to Wish List Compare this Product

Quickview

HP ProBook 430 G3 intel i7 6th Gen 4GB Ram 500GB HDD 13.3 inch Laptop

₹14,160

Ex Tax:₹12,000

Add to Cart Add to Wish List Compare this Product

Quickview

Lenovo G50-80 Intel Core i3 4th Gen 4 GB 500GB HDD Laptop 15.6 inch

₹7,500

Ex Tax:₹7,500

Add to Cart Add to Wish List Compare this Product

SOLD BY

ComponentOne

Product Quality

(0/5)

Delivery & Packaging

(0/5)

Service Support

(0/5)

Value

(0/5)

Price

(0/5)

Total Products 560

Have a question?

General
Warranty	30 Days
Warranty Terms	This product will be covered with a standard warranty of 30 Days from the time of delivery against manufacturing defects only. Refunds or replacements will be done against manufacturing defects. Warranty Voids if the product is misused, tampered with, static discharge, physical damage or burnt, water damage, use of chemicals & soldered or altered in any way.

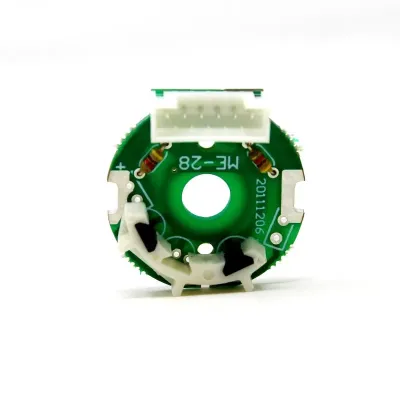

OE-28 Hall Effect Two-Channel Magnetic Encoder

Features-

A two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor

shaft. The quadrature encoder provides a resolution of 7 counts per revolution of the motor shaft when counting both edges of both channels. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48. The encoder has six pins output as shown.

OE-28 Hall Effect Two-Channel Magnetic Encoder’s Hall sensor requires an input voltage, Vcc, between 4.5 and 24 V and draws a maximum of 10 mA. The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction.

By counting both the rising and falling edges of both the A and B outputs, it is possible to get 7 counts per revolution of the motor shaft by both Channels.
